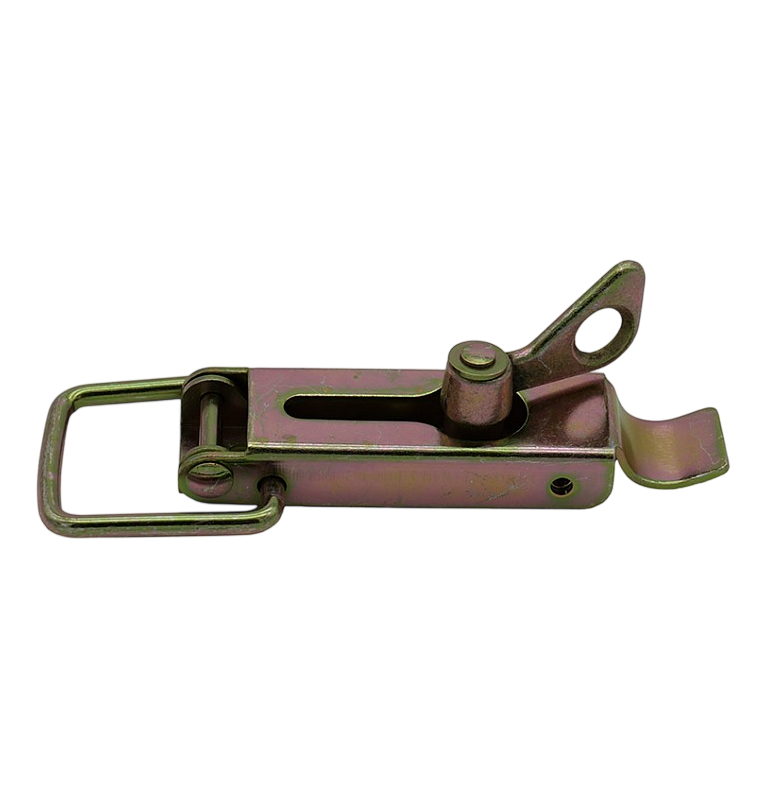

The KOMAS 15029 toggle latch with swivel eye is a robust lever-operated closing component designed for repeatedly joining and securing two parts. It can be used on transport cases, boxes, lids, hatches, trailer drop sides, service openings and technical covers.

After the latch is closed, the rotating swivel eye can be moved into the secured position. This helps prevent unintended lever release. The eye can also accept a suitable padlock for additional protection against unauthorised opening.

Key benefits

• lever mechanism for firm closure,
• rotating safety eye helps prevent accidental opening,
• eye suitable for adding a padlock,
• for boxes, cases, hatches, drop sides and technical covers,
• metal construction for repeated use,
• two finishes: yellow zinc and matt black.

Technical specifications

• Product type: toggle box latch with swivel eye
• Model: 15029
• Material: steel

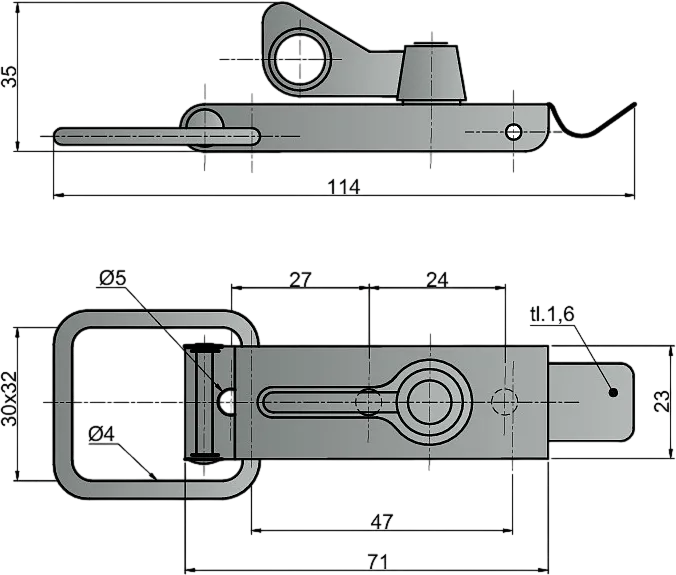

• Overall length: 114 mm
• Maximum height: 35 mm
• Body width: 23 mm
• Sheet thickness: 1.6 mm
• External loop dimensions: approximately 30 × 32 mm
• Loop wire diameter: 5 mm
• Pin diameter: 4 mm
• Weight: approximately 0.1 kg
• Price: per piece
• Catch plate or hook: not included

Available finishes

• Yellow zinc: code 042908, EAN 8590531429088
• Matt black: code 042962, EAN 8590531429620

Select the required finish from the product variants.

Installation and use

Install the latch body on the fixed part of the assembly. A separate hook or other suitable catch is installed on the moving part, such as a lid, door or drop side. Before final fastening, align both parts so the latch closes smoothly without twisting or side loading.

The catch, mounting hardware and padlock are not included. Select suitable fasteners according to the substrate material and required load capacity.

Frequently asked questions

What is the swivel eye used for?

It acts as a rotating safety device that helps prevent unintended lever release after closing. It also provides an opening for a padlock.

Can the latch be locked?

Yes. A suitable padlock can be passed through the opening in the rotating eye.

Is the catch included?

No. The hook or catch required to hold the loop must be selected and ordered separately.

What are the latch dimensions?

The latch is 114 mm long, 23 mm wide and up to 35 mm high.
