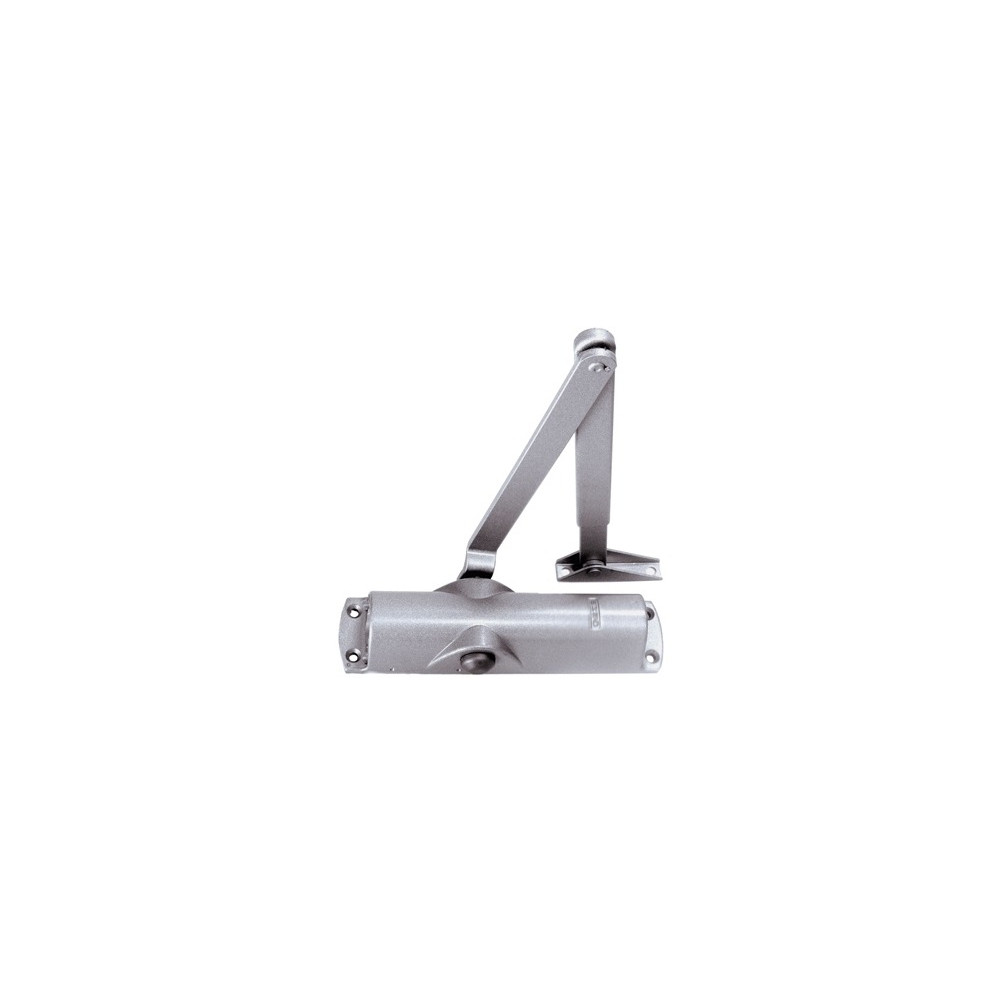

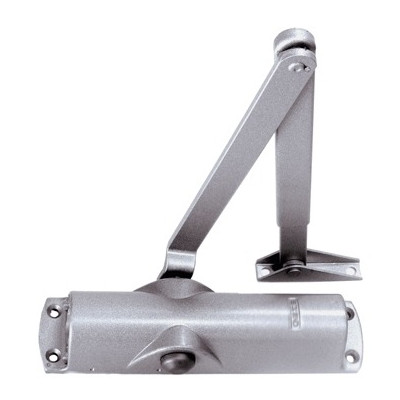

GEZE TS 1000 Door Closer with Link Arm

GEZE TS 1000 Door Closer with Link Arm is an overhead door closer for lighter single-leaf doors. It can be used on left- and right-hand doors and offers adjustable closing speed and hydraulic latching action.

Closing force is EN 2/3 in accordance with EN 1154. It is suitable for door leaves up to 950 mm wide; the supplier states a recommended door leaf weight up to 60 kg. The product is tested for at least 500,000 closing cycles.

Link arm versions

• standard link arm – without hold-open
• hold-open link arm – mechanical hold-open approximately from 70° to 150°; not intended for fire protection doors

Key features

• overhead door closer with link arm
• left- and right-hand doors
• EN 2/3 according to EN 1154
• door leaves up to 950 mm
• recommended weight up to 60 kg
• adjustable closing speed
• hydraulic latching action
• tested for at least 500,000 cycles

Technical specifications

• Manufacturer: GEZE
• Model: TS 1000
• Standard: EN 1154 / EN 2/3
• Maximum leaf width: 950 mm
• Recommended leaf weight: 60 kg

Frequently asked questions

Is it suitable for left- and right-hand doors?

Yes.

Is the closing speed adjustable?

Yes, and hydraulic latching action is also available.

Can the hold-open arm be used on fire doors?

No.
