COMAGLIO 1700 MINI automatic door seal for wooden, steel and aluminium doors. Suitable for fire and smoke-control doors with 30-minute resistance and acoustically certified to 43 dB.
Your data is protected with us.
Fast delivery of in-stock goods.
Goods can be returned in accordance with the law.

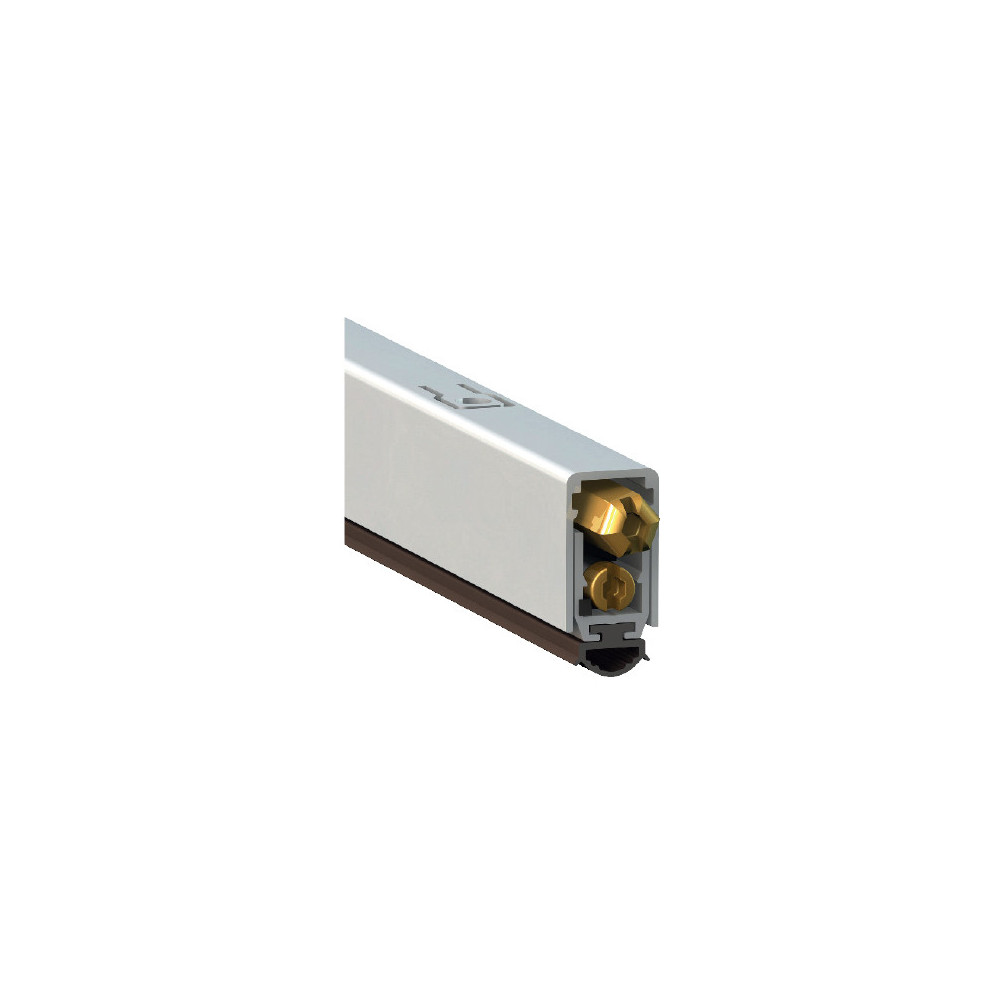

Automatic Door Seal 1700 MINI is a compact and durable retractable automatic door seal for wooden, steel and aluminium doors. It is also suitable for fire and smoke-control doors with 30-minute resistance and is acoustically certified to 43 dB.

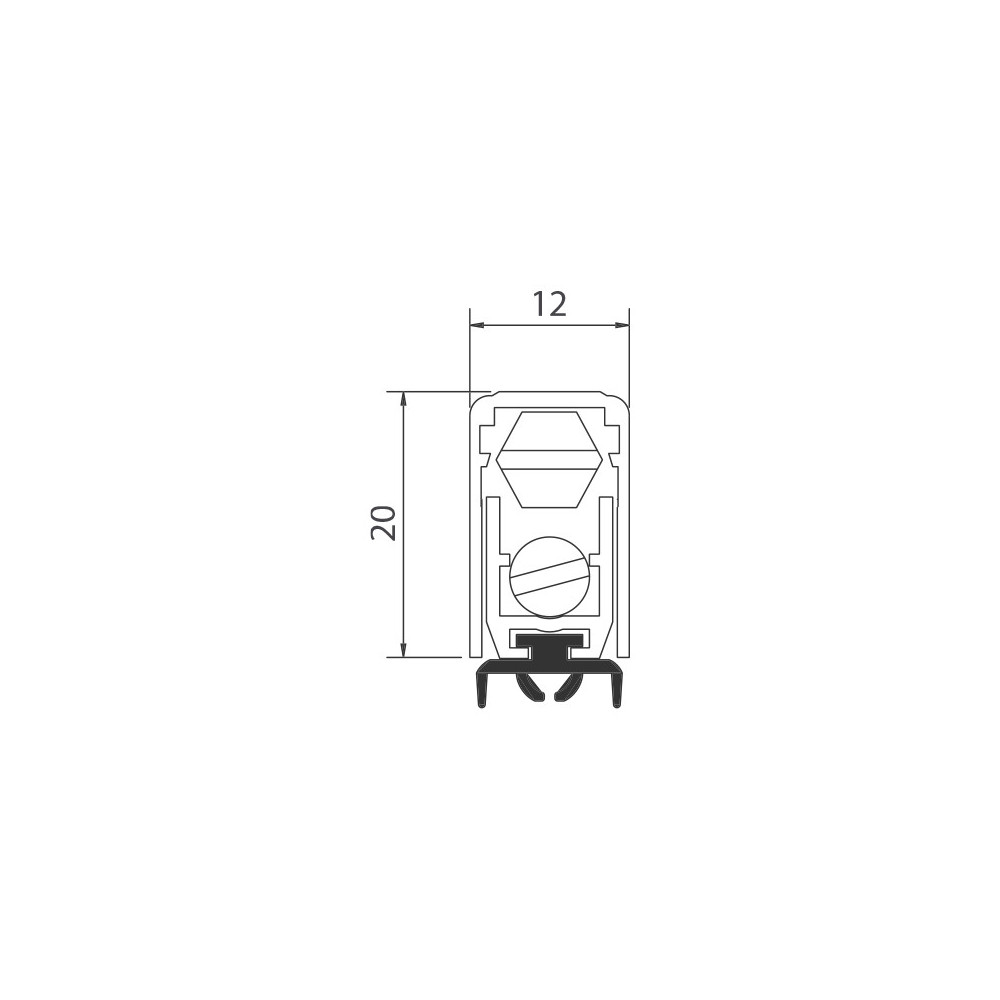

The seal drop is adjusted by means of a brass hexagonal actuator, with a maximum travel of 13 mm. A brass screw allows adjustment of the angle of the retractable sealing element. The profile is U-shaped and the rubber gasket has four pressure points. The retractable sealing element must be removed when fixing the profile. The product is tested for 200,000 cycles and can be shortened by up to 100 mm.
Wooden, steel and aluminium doors.
Yes. It is suitable for doors with 30-minute resistance.
Yes. The product has acoustic certification to 43 dB.
Yes. It can be shortened by up to 100 mm.
Data sheet
Specific References
Surface: BN - Brushed stainless steel, Black matt
Surface: Matt chrome, Nickel matt, White RAL 9016, Silver RAL 9006, Brown RAL 8017, Brown-gray RAL 8019, Black structured RAL 9005, Graphite structured RAL 7021, Gold RAL 1036W
Výška: 68 mm, Dĺžka: 28 mm, Povrch: mosadz, tmavá patina
Surface: Polished stainless steel, Brushed stainless steel
