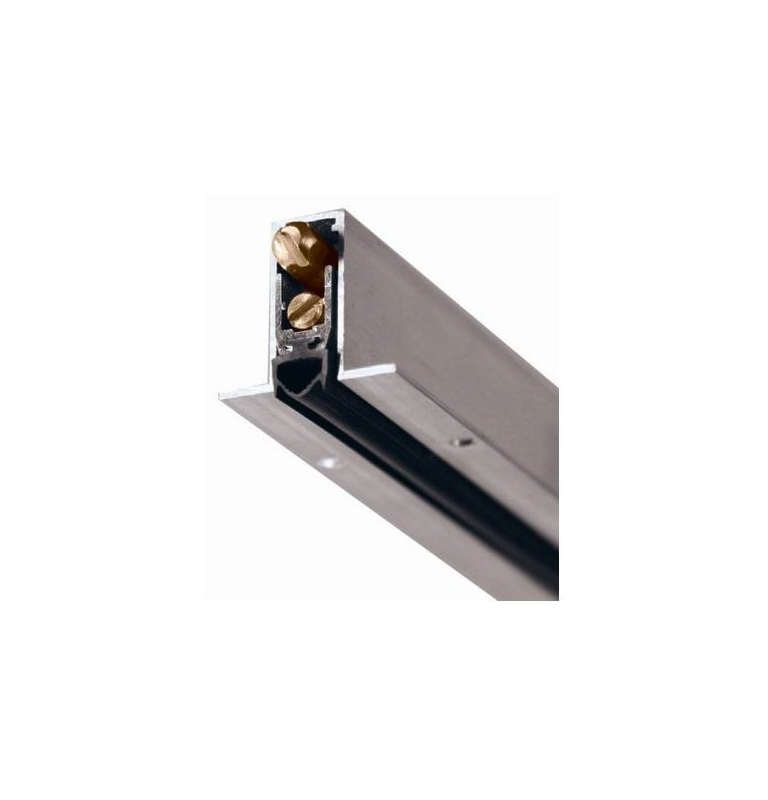

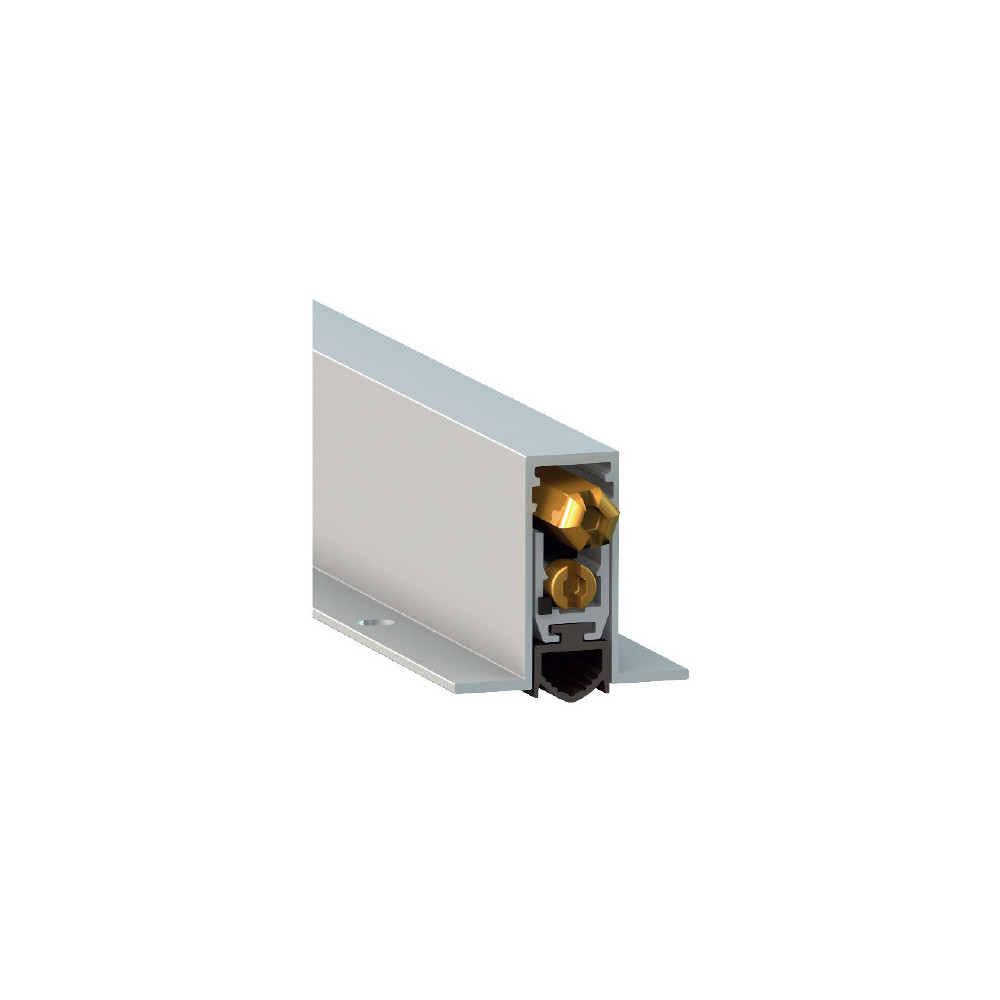

Automatic Door Seal 1812

Automatic Door Seal 1812 is a durable retractable automatic door seal for wooden and steel doors. It is also suitable for fire and smoke-control doors with 30-minute resistance and is acoustically certified to 44 dB.

The seal drop is adjusted by means of a brass hexagonal actuator, with a maximum travel of 18 mm. The profile is fixed in an omega-shaped channel without removing the retractable sealing element. A brass screw allows adjustment of the drop angle. The gasket is made from non-combustible silicone. The product is tested for 200,000 cycles and can be shortened by up to 100 mm.

Key features

• for wooden and steel doors
• for fire and smoke-control doors with 30-minute resistance
• 44 dB acoustic certification
• adjustable retractable sealing element
• maximum drop 18 mm

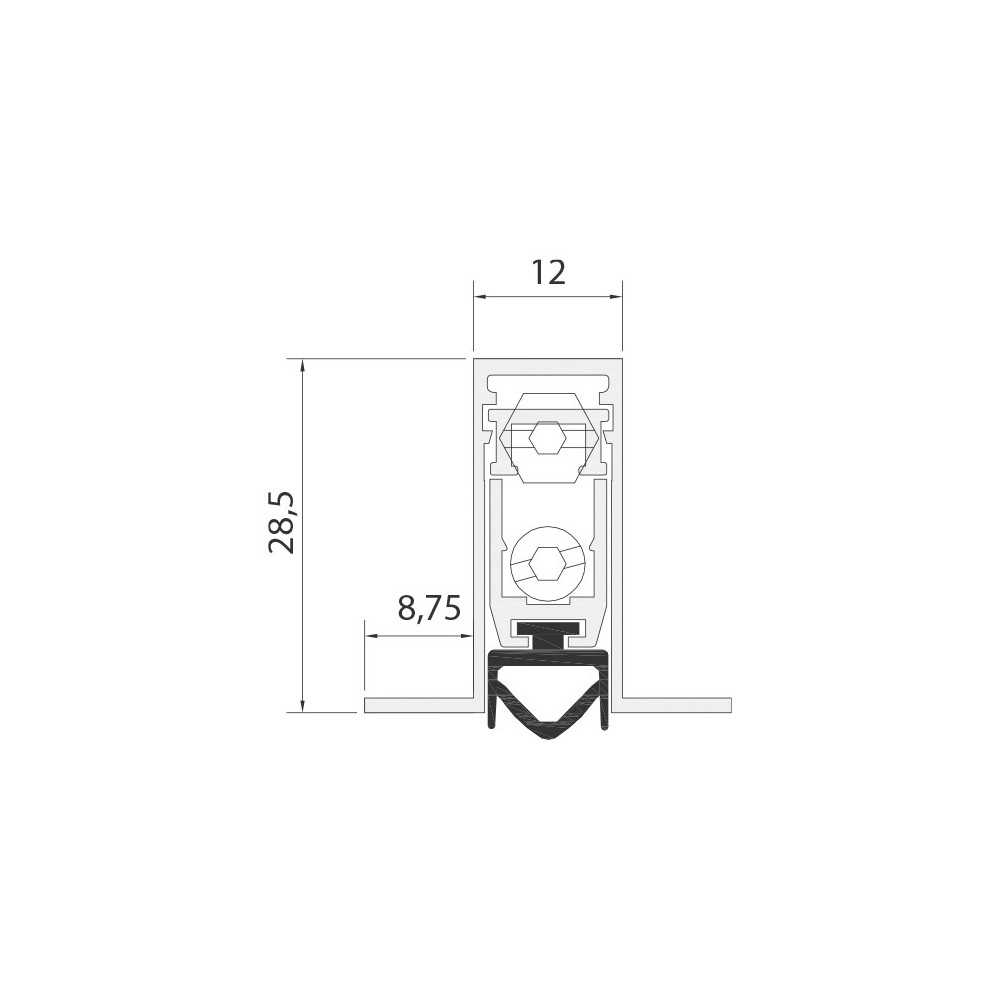

• omega-shaped profile
• drop-angle adjustment by brass screw
• non-combustible silicone gasket
• tested durability of 200,000 cycles
• can be shortened by up to 100 mm

Technical specifications

• Product type: automatic / retractable door seal
• Manufacturer: COMAGLIO
• Model: 1812
• Application: wooden and steel doors
• Fire and smoke resistance: 30 minutes
• Acoustic certification: 44 dB
• Maximum drop: 18 mm
• Profile: omega-shaped
• Durability: tested for 200,000 cycles
• Gasket: non-combustible silicone

Frequently asked questions

Which doors is the 1812 designed for?

Wooden and steel doors, including fire and smoke-control doors with 30-minute resistance.

Is it suitable for acoustic doors?

Yes. The product has acoustic certification to 44 dB.

What is the maximum seal drop?

The maximum travel of the sealing element is 18 mm.

Can the seal be shortened?

Yes. It can be shortened by up to 100 mm.
