COMAGLIO 520 automatic door seal for wooden and steel doors. Suitable for fire and smoke-control doors with 30-minute resistance and acoustically certified to 34 dB.
Your data is protected with us.
Fast delivery of in-stock goods.
Goods can be returned in accordance with the law.

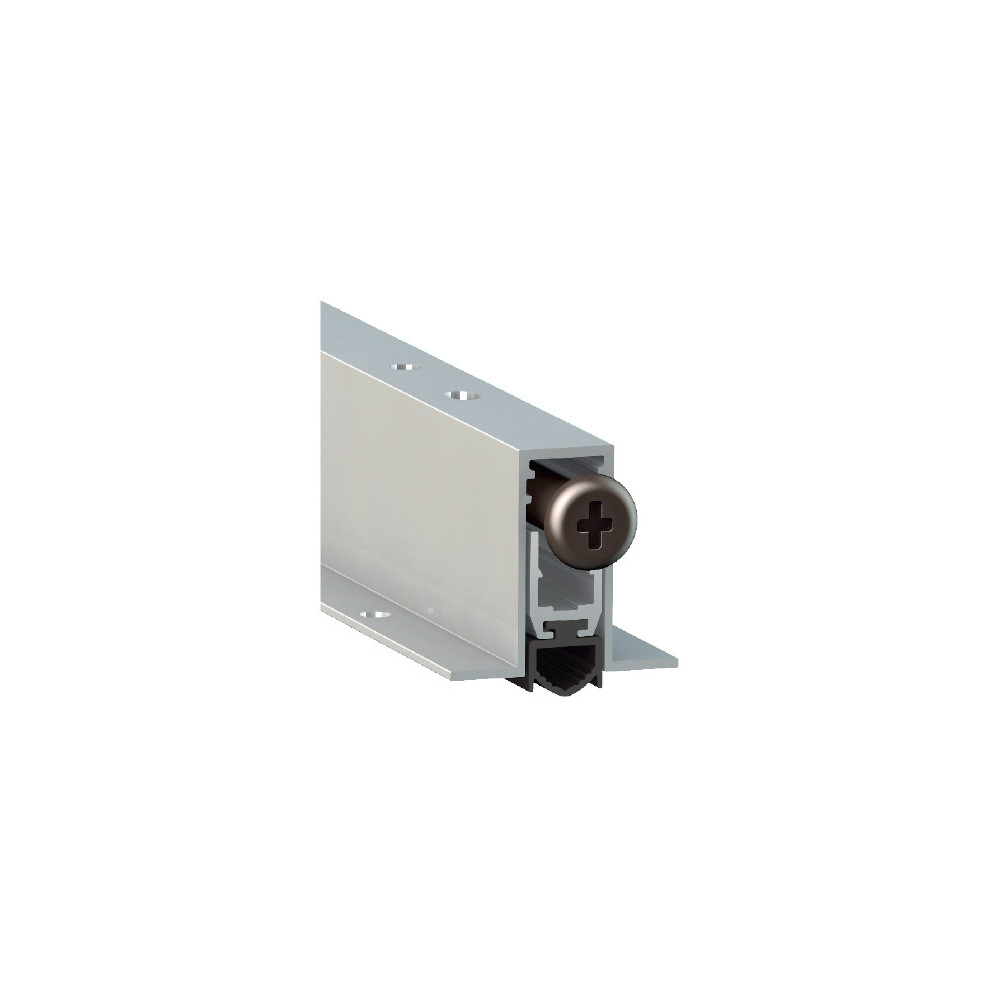

Automatic Door Seal 520 is a durable retractable automatic door seal for wooden and steel doors. It is also suitable for fire and smoke-control doors with 30-minute resistance and is acoustically certified to 34 dB.

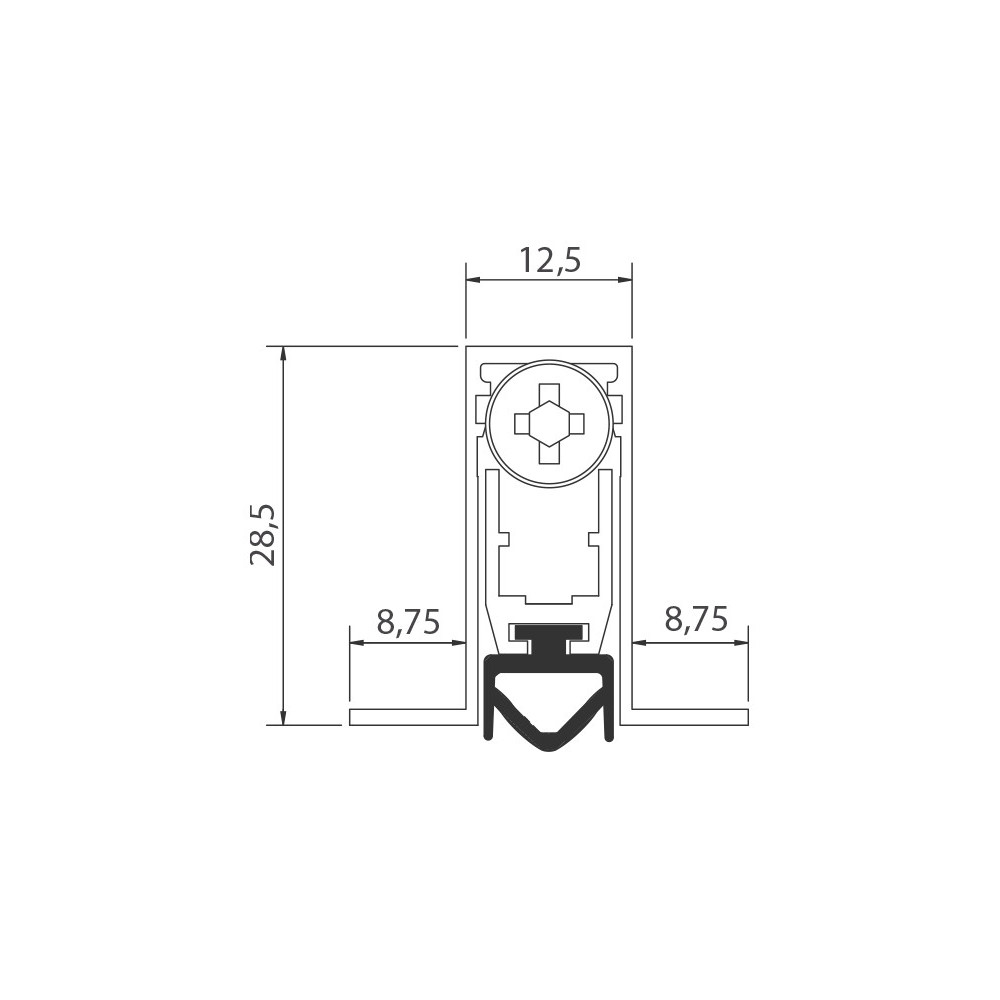

The seal drop is adjusted by means of a round nylon actuator, with a maximum travel of 13 mm. The seal is fixed into an omega-shaped profile without removing the retractable sealing element. It uses an EPDM rubber gasket. The product is tested for 200,000 cycles and can be shortened by up to 200 mm.
Wooden and steel doors.
Yes. It is suitable for doors with 30-minute resistance.
Yes. The product has acoustic certification to 34 dB.
Yes. It can be shortened by up to 200 mm.
Data sheet
Specific References
Surface: BN - Brushed stainless steel
ELLEN DBS Invisible brush door bottom seal with an aluminium profile and soft brush. It mounts discreetly beneath the door leaf and is designed for threshold-free interior doors.
Surface: Brushed stainless steel, Black matt
Surface: BN - Brushed stainless steel
COMAGLIO 1712 automatic door seal for wooden, aluminium and PVC doors. Suitable for fire and smoke-control doors with 30-minute resistance and acoustically certified to 44 dB.
Surface-mounted COMAGLIO 1750COMAX automatic door seal for wooden, steel, aluminium and PVC doors. It mounts directly to the door leaf, offers an adjustable drop up to 13 mm, 39 dB acoustic certification and tested durability of 200,000 cycles.
