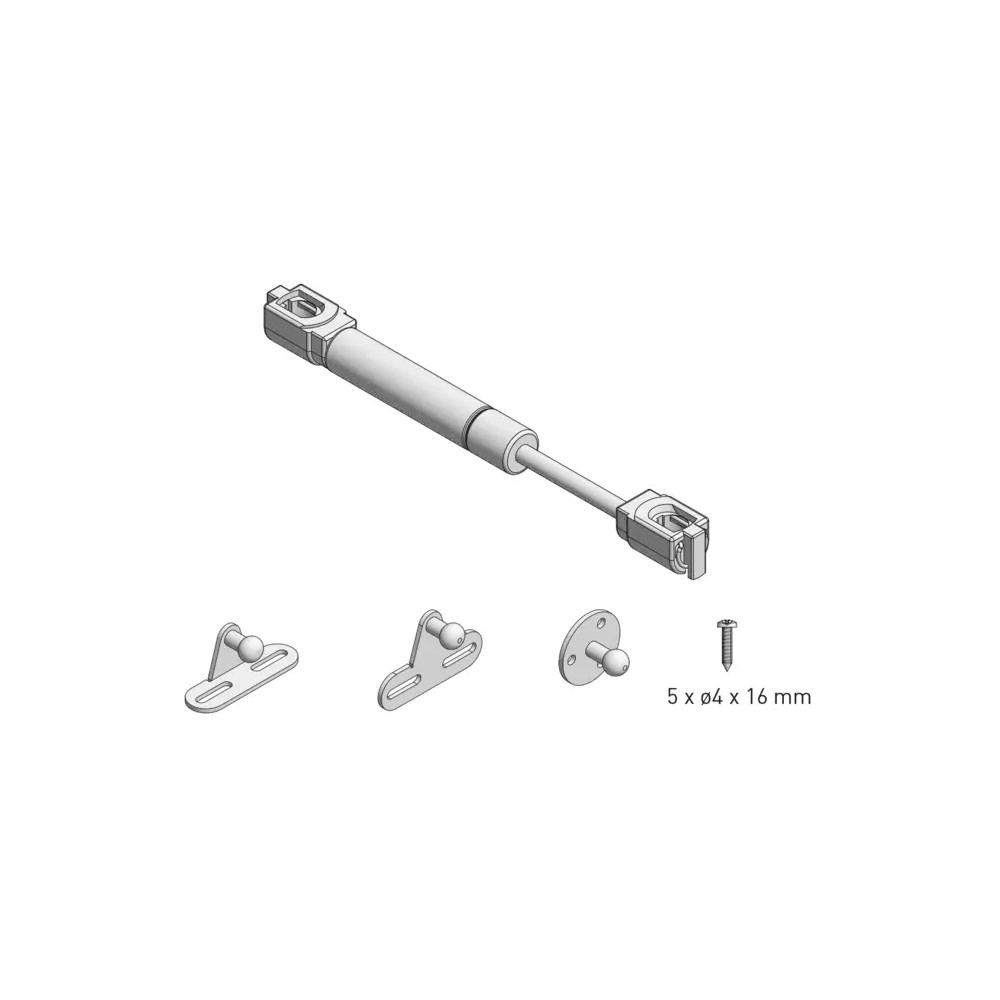

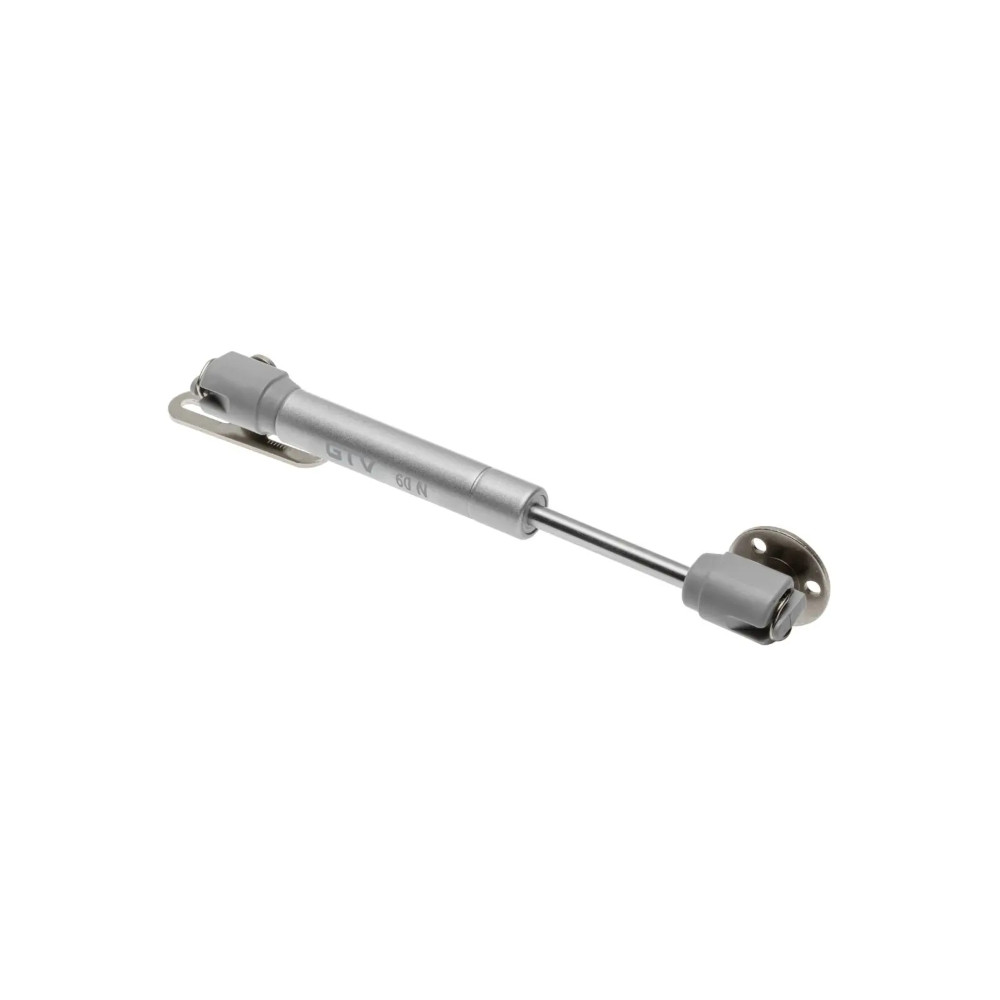

Lift-up gas spring GTV
Original price:
€1.51
€1.20
Save 20%
The GTV lift-up gas spring ensures smooth and safe opening of furniture flap doors. Ideal for kitchen and wall cabinets, easy to install and designed for long-lasting performance.
Secure shopping
Your data is protected with us.
Delivery of goods
Fast delivery of in-stock goods.
Returns
Goods can be returned in accordance with the law.
Selection of gas spring force
| Door opening angle | Lift force | Door height [mm] | |||
|---|---|---|---|---|---|
| 300 | 400 | 500 | 600 | ||
| Door weight [kg] | |||||
|
75°
 |
60 N | 2,0 | 1,5 | 1,2 | 1,0 |
| 80 N | 2,7 | 2,0 | 1,6 | 1,4 | |
|
90°
 |
60 N | 1,8 | 1,3 | 1,1 | 0,9 |
| 80 N | 2,4 | 1,8 | 1,4 | 1,2 | |
|
100°
 |
60 N | 1,6 | 1,2 | 0,9 | 0,8 |
| 80 N | 2,1 | 1,6 | 1,2 | 1,0 | |
Installation dimensions
| Door opening angle | Inset door | Twin door | Overlay door | ||||||
|---|---|---|---|---|---|---|---|---|---|
| H [mm] | L [mm] | A [mm] | H [mm] | L [mm] | A [mm] | H [mm] | L [mm] | A [mm] | |
| 75° | 188 | 70 | 20 + front thicknes | 180 | 70 | 20 | 172 | 70 | 20 |
| 90° | 176 | 60 | 20 + front thicknes | 167 | 60 | 20 | 160 | 60 | 20 |
| 100° | 172 | 50 | 20 + front thicknes | 164 | 50 | 20 | 154 | 50 | 20 |
PD-G60160-02
Data sheet
- Price per
- 1 piece
Specific References
- EAN13
- 5908231313577
The GTV lift-up gas spring ensures smooth and safe opening of furniture flap doors. Ideal for kitchen and wall cabinets, easy to install and designed for long-lasting performance.
